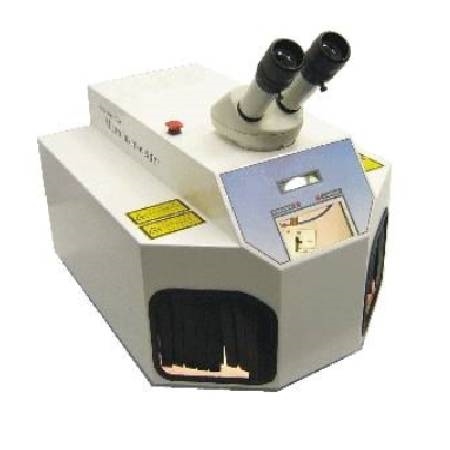

Bench Top Pro Laser Welder BD-60
Bench Top Pro Laser BD-60
Product images. including color, may differ from actual product apperance
Best Wholesale prices for Jewelers on the internet !
Our Price: $18,500.00
Spanish Name: Laser de Mesa Pro BD-60

Product Code: L104

The BD 60 Pro Micro Laser is the most cost effective laser welders available. It can out perform many other larger sized welders and it's small size allows it to be used in any facility. For use on gold, Platinum, silver, titanium, and steel alloys.
The BD 60 Pro is designed for users that want the abilities of a larger machine but, are excluded by the cost.
Application: For retail repair shops Jewelry design and repair, watch and eye glasses, medical technology material deposit, and repair of small molds and inserts.

Technical Data
Laser crystal Nd:YAG, 1064 nm
Max. average power 35 W
Pulse energy 0.5 - 60 J @ 8ms
Peak pulse power 3 kW
Pulse duration 0.5 - 15.0 ms
Pulse frequency Single Pulse / Continuous Pulse 1.0 - 10 Hz
Controls Simple Joystick Controller
Optical viewing system Stereo-Microscope
Cooling of the laser Air/Water Cooled
Protection gas supply Single Nozzle System
Dimensions (HxWxD) 17.5x16x26 i n.
Weight Approx. 70 Lbs.
Electrical connection 200-240V / 50-60 Hz, 10 A
Optional Work Stand
