Benchtop Laser Welder LZR 35 Series
Benchtop Laser Welder LZR 35 Series
Product images. including color, may differ from actual product appearance.

Alternative Views:


Best Wholesale prices for Jewelers on the internet !
Our Price: $9,995.00



Product Code: LW-2
Qty:

Description Technical Specs

Laser micro welder lets you accomplish extraordinary welds in the most difficult of places. With a laser, if you can see where a weld needs to be, you can reach it. You will appreciate the ability to use the laser to smooth and polish a work area or fill porosity in half the time. With a laser, there’s no electrode maintenance to interrupt your work, which saves time. We offers four different power options to fit your budget so that your studio or factory can easily justify an Orion laser micro welder.

Orion LZR Series

LZR 75LZR 125LZR 160LZR 180
AVERAGE POWER
75 W125 W160 W180 W
PEAK POWER [KW]
5 kW7 kW8 kW9 kW
ENERGY RANGE
0.1 - 75 J0.1 - 125 J
0.1 - 160 J
0.1 - 180 J
LASER SOURCE: WAVELENGTH
Nd: YAG 1064 nm
IMPULSE TIME
0.1 - 20 ms
WELDS PER SECOND
1 - 30
SPOT DIAMETER
0.2 - 2.0 mm
PROGRAMS6 Pulse Shaping Presets
MEMORIES CELL STORED
100
CONTROL JOYSTICK
On Board
EXTERNAL CONTROL
Color Touch Screen
INPUT POWER
110 or 230 V AC, 50/60 Hz, single
AMPERE
10A
MAX DIMENSIONS [LxWxH]
76x53x56 cm
TYPE
Benchtop
ARGON / AIR NOZZLE
Yes / Yes

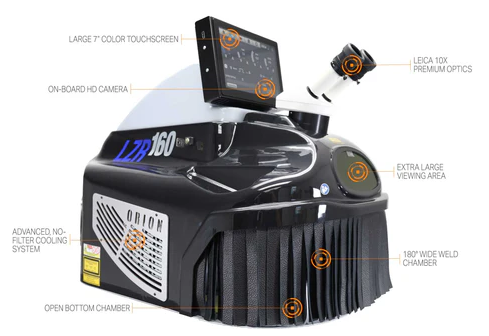

Features

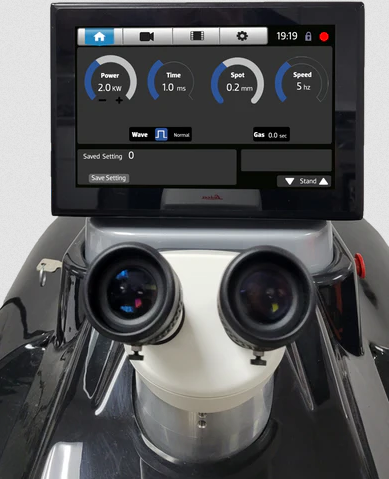

  • Large touchscreen interface
    • Slider bars for making quick adjustments
  • Joystick control inside the weld chamber
  • Built-in HD camera
  • HDMI output for displaying camera feed on a TV
  • Leica 10x Optics
  • 3 year warranty
  • Argon hookups for shielding gas
  • Compressed air hookups with nozzle inside weld chamber for cooling off welded pieces
  • Water cooling system uses a resin sack instead of a water filter
    • Less maintenance as the resin sack can go years without needing to be replaced
  • Flashlamp is rated at +/- 5 million shots
  • Dual fans and radiators for better cooling
  • Heads Up Display
    • View power settings from inside the optics
  • Open-bottom weld chamber- the bottom of the chamber can be dropped out of position to accommodate large or heavy items
  • 180 degree open weld chamber- you can feed pieces in one side and out the other
