Home > Soldering > Laser Welder >

Product images. including color, may differ from actual product apperance
Best Wholesale prices for Jewelers on the internet !
Our Price: $32,500.00
Spanish Name: Ingenieria alemania

Product Code: L102

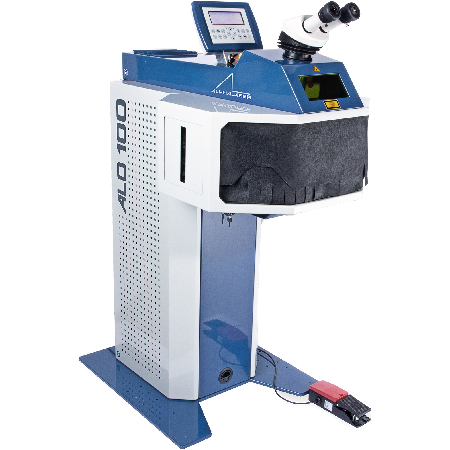

We offer the finest laser-welders in the Jewelry Industry, and provide full training, service and technical support! Our laser-welders have the lowest cost of operation in their class. These welders are being used in every aspect of jewelry repair and manufacturing. From small one-man repair shops to large production manufacturing facilities. Retail repair and trade shops can double their repair business and cut expensive labor and solder costs. Laser-welding is not only ideal for all jewelry applications, but it is also utilized for many watch and eyeglass repairs as well! Each Power-laser system works in all the traditional jewelry metals, and especially makes Platinum, Gold and Silver repairs easy. The price includes the laser welder, shipping, installation, one day of training in the continental US.WE DO NOT USE EXTENDED WARRANTIES BECAUSE WE DO NOT NEED THEM

Technical Data
Laser crystal Nd:YAG, 1064 nm
Max. average power 35 W
Pulse energy 100 J
Peak pulse power 9 kW
Pulse duration 0.5 - 20.0 ms
Pulse frequency single pulse / continuous Pulse 0.5 - 10 Hz
Programming memory 16 parameter sets
Diameter of welding spot 0.2 - 2.0 mm
Optical viewing system Leica Stereo-Microscope
Cooling of the laser air/water cooled
Protection gas supply Double Nozzle
Dimensions (H*W*D) 1330*540*820 mm
Weight approx. 110 kg
Electrical connection 200-240V / 50-60 Hz, 16 A
