AB-100 PLASTIC INJECTOR (MANUAL)

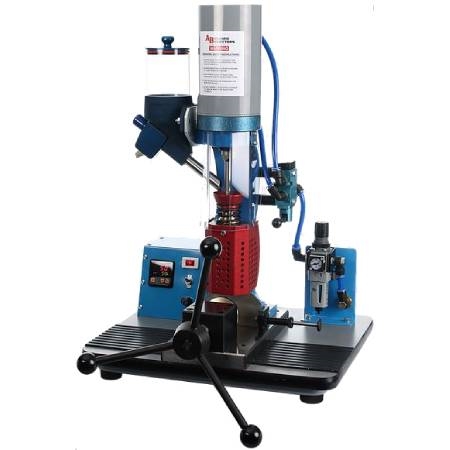

AB-100 Plastic Injector
Product images. including color, may differ from actual product apperance

Best Wholesale prices for Jewelers on the internet !
Our Price: $6,000.00
Sale Price: $5,655.00
You save $345.00!
Spanish Name: AB-100 INYECTOR DE PLASTICO (MANUAL)


Product Code: C11
Qty:

Description

Designed to inject plastic into metal molds, for short runs of small size plastic products. The C11 plastic injectors produce the finest patterns with the finest detail and dimensional stability at the most economical cost. The patterns will withstand mis-handling without damage or distortion, always maintains their original shape.

RAM POWER 1500 lbs. at 125 p.s.i.
CLAMP POWER 4000 Lbs.
PRODUCTION CAPACITY 450/Hr.
INJECTION CAPACITY 1/4 oz./6 g
VOLTAGE 120V 50/60 Hz, 400W
TEMPERATURE RANGE 100°F–600°F
MAX. MOLD SIZE 2''H x 3''L x 11/4''T
MAX. MOLDING AREA 32''
RAM DIAMETER 9/16''
RAM PRESSURE ON MATERIAL 8500 p.s.i.
NOZZLE ORIFICE .093
OVERALL DIMENSIONS 18''W x 21''L x 25''H
WEIGHT 70.4 lbs./90.2 lbs.
