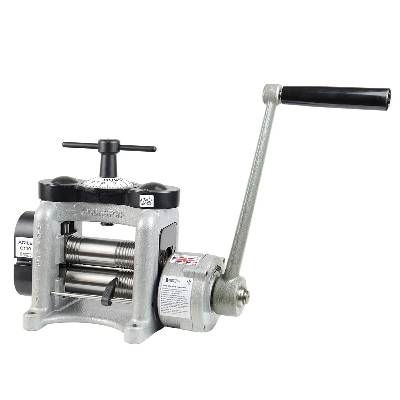

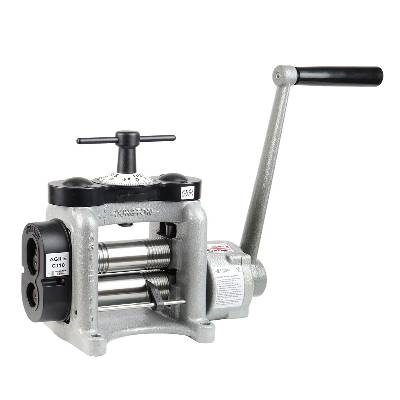

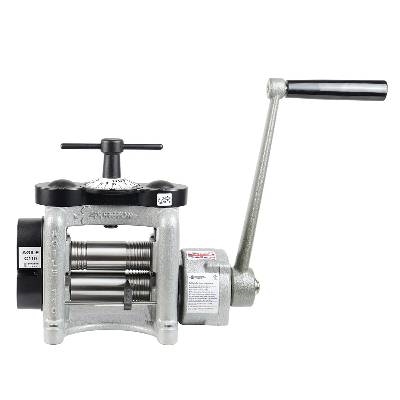

Durston Agile C110 Combination 110mm Rolling Mill
Durston Agile C110 Combination 110mm Rolling Mill
Product images. including color, may differ from actual product appearance

Alternative Views:
Our Price: $952.00


Product Code: R42
Qty:

Description Technical Specs

The Durston Agile C110 is a precision-engineered combination rolling mill designed for jewelers and metalworkers seeking high quality in a more manageable form‑factor. It delivers professional results in both sheet and wire rolling, all within a lighter, more agile frame than Durston’s top-tier DRM series.
Key Highlights:

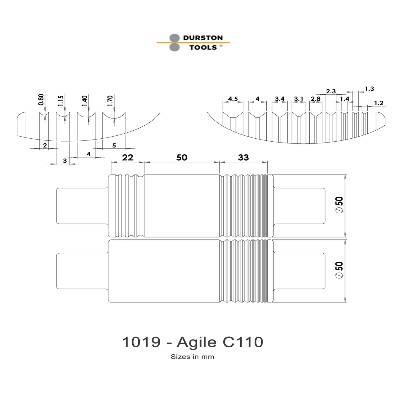

  • Combination Roller Configuration: One set of rolls with a 50 mm flat section, 9 square wire grooves (1–7 mm), and 4 half‑round grooves (2, 3, 4, 5 mm), ideal for rolling sheet, square wire, and half‑round wire.
  • Roller Specs: 110 mm wide, 50 mm diameter rolls hardened to 64 RC with approx. 6 mm induction case depth.
  • Gear Ratio: Heavy-duty 4:1 reduction gearbox with two additional internal gears for smoother rolling.
  • Adjuster Mechanism: Top-mounted T‑bar adjustment with calibrated dial for precise and efficient settings.
  • Frame & Bearings: Lightweight yet robust steel frame (“Agile” version), fully supported bearing blocks with self-lubricating, maintenance-free bearings.
  • Safety Features: Protective guard over top gears for operator safety.
  • Sheet & Wire Capacity: Max sheet thickness 5.5 mm, max wire thickness ≈7 mm.
  • Dimensions & Weight: 345 × 200 × 320 mm (L×W×H), weighing approximately 26 kg (shipping weight ~28 kg / 63 lbs).
  • Origin: Manufactured in the UK, part of Durston’s award‑winning Agile series.
Benefits:
  • All-in-one milling: Replace multiple machines—work flat sheet, square, and half-round wire with the same tool.
  • Professional-level performance: Ideal for both hobbyists and professionals in jewellery and metalsmithing.
  • Reduced operator fatigue: Gearbox efficiency makes rolling thick or hard metals easier.
  • Low maintenance & high reliability: Hardened parts and lubrication-free bearings stand the test of time.
  • Safer workspace: Guarded gears minimize risk during operation.
  • Studio-friendly footprint: Compact size fits benchtops without sacrificing capacity.
Agile C110 - Product Introduction - Durston
Features
  • Combination rollers: Enables both flat sheet and wire/half‑round shaping
  • High‑precision hardened rolls: Ensure smooth finishes and long-lasting performance
  • 4:1 reduction gearbox with extra gearing: Makes rolling smoother and easier
  • Compact yet robust frame (“Agile” range): Lighter than DRM range but equally strong
  • T-bar adjuster + calibrated dial: Simplifies and speeds up calibration
  • Built-in safety: Gear guard protects operator hands
