Durston 150mm Combination Rolling Mill C150 RE
combination durston rolling mill c150 re
Product images including color, may differ from actual product appearance

Alternative Views:
Our Price: $2,072.00


Product Code: R50-6
Qty:

Description Technical Specs

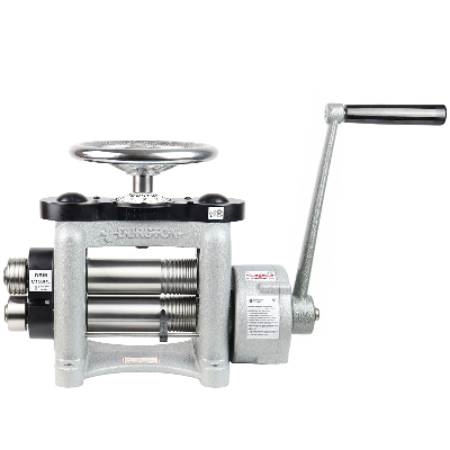

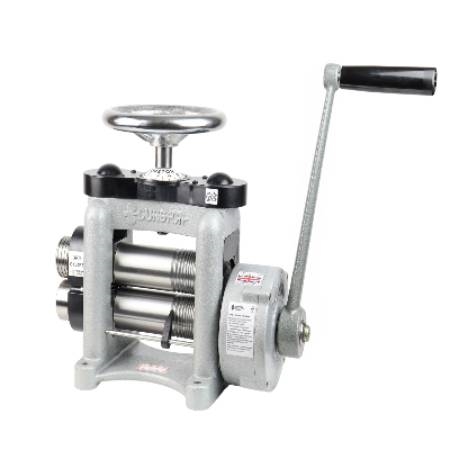

The Durston DRM‑C150RE is a high-performance 150 mm combination rolling mill, engineered for both flat sheet and wire rolling (plus half-round profiles). It features an industrial-grade 5:1 reduction gearbox, induction-hardened rolls, and a single-piece cast iron frame—designed for precision, longevity, and pro-level jewelry production
Benefits:
  • Enhanced Versatility: Processes flat sheets, square/round wire, and half-round profiles—a single tool for multiple needs.
  • Heavy-Duty Performance: Ideal for professional jewelers needing reliable performance with thicker/heavier metals.
  • Precision & Finish: Hardened rolls and supported bearings ensure uniformly flat, scratch-free output.
  • User Comfort: The gearbox greatly reduces manual effort, especially with harder alloys.
  • Built to Last: Sturdy cast iron and hardened components mean long-term durability.
  • Lower Maintenance: Designed with maintenance-free parts and safety guards for worry-free use.
Features

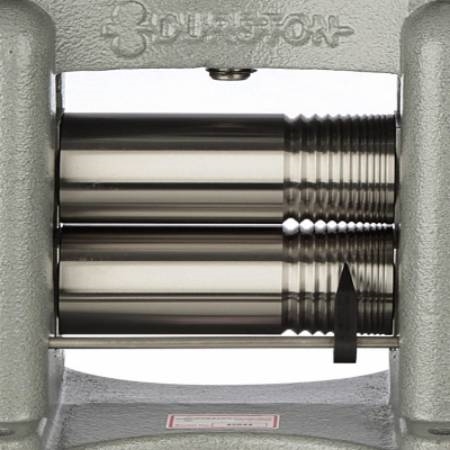

  • Combination Rolls: Flat sheet, wire grooves, and half-round extensions—all in a single mill.

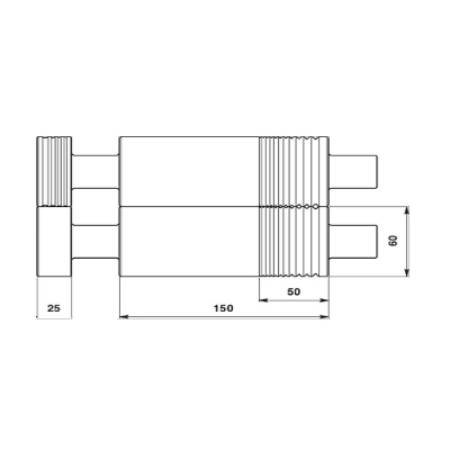

  • Wide Working Capacity: 150 mm roller length supports larger jewelry applications.
  • Precision Grooves: 11 square-wire slots (1–8 mm) for consistent wire shaping.
  • Half-Round Extensions: Four diameter options for D-shape or half-round profiles.
  • Effort-Reducing Gearbox: 5:1 reduction ratio makes rolling dense metals much easier.
  • Durable Hardened Rolls: RC64 hardness yields resistance to wear and surface damage.
  • Self-Lubricating Bearings: Promotes low maintenance and smooth operation under load.
  • Safety Gear Guard: Minimizes risk of hand injury during operation.
