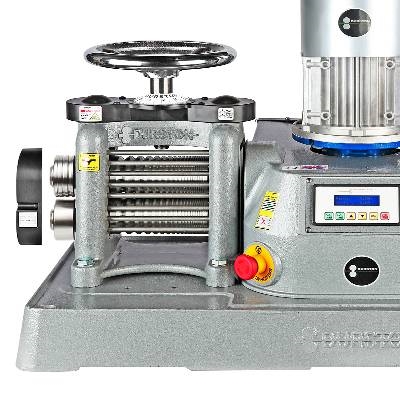

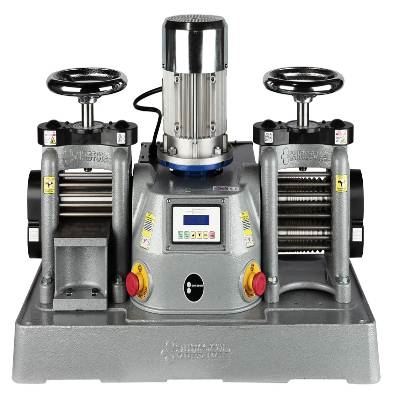

The Durston DRM‑130 is a compact, bench‑top double‑sided powered combination rolling mill. It accommodates flat sheets (up to 130 mm width) on one side and square wire (1–10 mm, via 19 grooves) on the other. Constructed with a rigid cast‑iron frame and gearbox, it’s driven by a 1.1 kW (1.5 hp) motor featuring variable speed, forward/reverse controls, and numerous safety enhancements Benefits: High Precision & Consistency: Hardened rolls and gear reduction ensure even, repeatable results ideal for jewelry and metalworking. User-Friendly Operation: Variable speed and reversible drive reduce effort and increase control. Quiet, Efficient Running: Near‑silent operation suitable for workshop environments. Resilient & Maintenance-Light: Cast iron body withstands demanding use, while hardened rolls and sealed bearings minimize maintenance. Versatility: Handles a wide range of flat, square, and half‑round profiles—perfect for creative and industrial projects.
DRM 130 Double-Sided Power Mill - Product Introduction - Durston
| Feature |
Specification |
| Roll Width (flat & wire) |
130 mm |
| Roll Diameter |
65 mm |
| Flat Sheet Capacity |
Up to 6 mm thick |
| Wire Groove Count |
19 square grooves (10 → 1 mm) |
| Side Extensions |
7 half‑round grooves (1.5, 2, 3, 4, 6, 8 mm) |
| Motor |
1.1 kW (1.5 hp), continuous operation |
| Speed Range |
0–30 rpm variable; forward/reverse controls |
| Frame & Gearbox |
Manufactured from cast iron |
| Roll Hardness |
Induction‑hardened to 64 RC (6 mm deep on flat roll) |
| Weight |
Approx. 180–200 kg |
| Dimensions |
~830 × 390 × 540 mm |
| Voltage Options |
110 V or 220 V |
| Safety Features |
Emergency stop buttons, safety bars, roller gear guards, extension roller covers |
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features

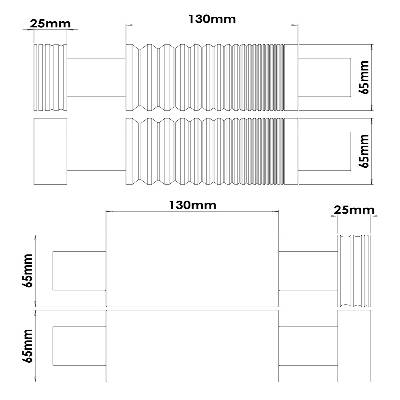

- Double-Sided Precision Rolling: One flat roll and a wire roll with 19 grooves (10 → 1 mm) enable versatile material shaping.
- Powerful Cast-Iron Construction: Motor, frame, and gearbox cast‑iron for strength, durability, and smooth operation.
- Variable Speed with Direction Control: Fine-tune rolling speed (0–30 rpm) and easily switch direction.
- Durable Hardened Rolls: Rolls hardened to 64 RC; flat roll case is hardened 6 mm deep, offering long service life.
- Extension Rollers: Includes two full sets offering seven forming profiles for curved work.
- Robust Safety Package: Features emergency‑stop buttons, front/rear safety bars, top-gear and roller‐end guards
|
|
|
|
|
|
|
