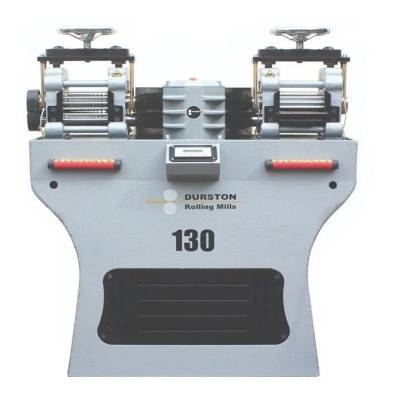

The Durston FSM 130 Floor‑Standing Double‑Sided Powered Combination Rolling Mill is a heavy-duty, industrial-grade tool crafted for professional metalworkers and jewelers. It features a broad 130 mm wide flat roll on one side and a 19-groove square-wire roll on the other, all built into a rugged cast-iron housing. Powered by a 1.1 kW motor with variable forward/reverse control and equipped with automatic lubrication, this mill delivers precise, quiet, and reliable performance for rolling sheet, wire, and half-round profiles. Benefits: Precision and Longevity: Hardened rollers and automatic lubrication maintain consistent output and reduce wear. Versatility: Whether shaping flat sheets, square wire, or half-round profiles, this mill adapts to varied metalworking tasks. User-Centric Design: Ease of speed adjustment, directional control, and safety features enhance operator comfort and control. Reliable Performance: Robust motor and gearbox deliver dependable power for high-volume use.
| Specification |
Detail |
| Roll Width |
130 mm |
| Roll Diameter |
65 mm |
| Max Flat Sheet Thickness |
14 mm |

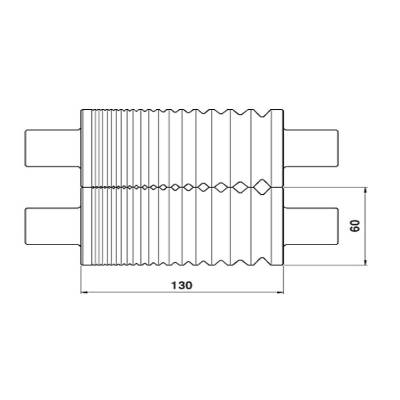

| Wire Groove Roll |
19 grooves (7 → 1 mm square wire) |
| Side Extensions |
Four half-round rolls (4, 3, 2, 1.5 mm) |
| Motor |
1.1 kW (~1.5 hp), continuous duty |
| Speed Control |
Variable speed, forward/reverse |

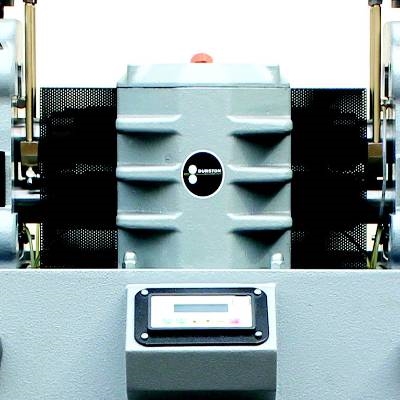

| Frame & Gearbox |
Cast iron, helical gears |
| Roll Hardness |
Induction-hardened to 64 RC |
| Auto Lubrication |
Yes (roll bearings) |

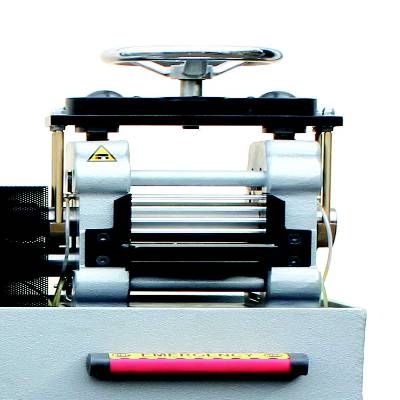

| Safety Features |
Emergency stop, safety bars, gearbox/roller guards |
| Dimensions (L×W×H) |
825 × 450 × 1210 mm |
| Machine Weight |
approx. 390 kg |
| Gross Weight |
approx. 490–600 kg |
|
|
|
 |
|
 |
|
