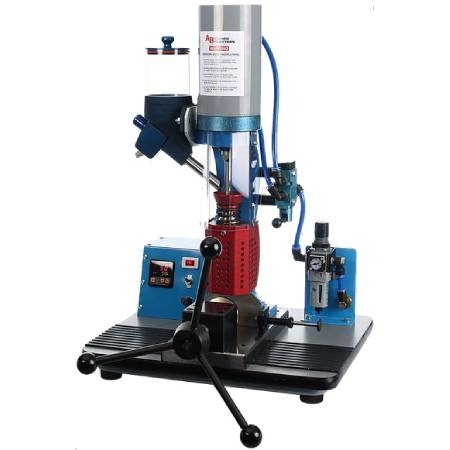

AB-200 PLASTIC INJECTOR (SEMI-AUTOMATIC)
AB-200 PLASTIC INJECTOR
Product images. including color, may differ from actual product apperance

Best Wholesale prices for Jewelers on the internet !
Our Price: $9,350.00
Sale Price: $9,000.00
You save $350.00!
Spanish Name: AB-200 INYECTOR DE PLASTICO (SEMI-AUTOMATICA)


Product Code: C13
Qty:

Description

The AB-200 plastic injector is a semi-automatic tabletop plastic injection machine designed with a small foot print to fit into the most restricted of workspaces. The AB-200 plastic injector features an adjustable sequencing and injection cycle for maximum productivity. This is a highly portable semi-automatic plastic injection machine requiring no permanent installation. Designed to inject plastic into metal molds, for short runs of small size plastic products. The C13 plastic injectors produce the finest patterns with the finest detail and dimensional stability at the most economical cost. without damage or distortion, always maintaining their original shape. The C13 semi-auto injector will automatically clamp, inject, and release the mold from the machine. Air compressor not included
Model
AB-200-4
Clamp Force(lbs) 4000/5500lbs
Shot Capacity
1/4oz (6grams)
Injection press,@ 125PSI
6333PSI
Voltage required
*120V 50/60HZ
Heat capacity
400 watts
Temperature range
100ºF-600ºF
Mold Height
2-1/2''
Sprue Centre Line
7/8''
Daylight bet. mold opening
2'' to 2-1/4''
Maximum molding area
3 sq. inches
Cycle Time
5-99 seconds
Ram Diameter
9/16 (14.28mm)
Nozzle Orifice
0.093

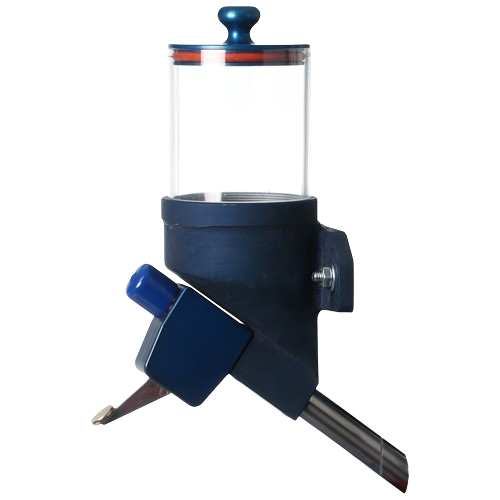

Hopper Capacity
7.85oz(220grams)
Machine Dimension
18''x25''x32''
Machine Weight
90.2lbs. (41KG)
